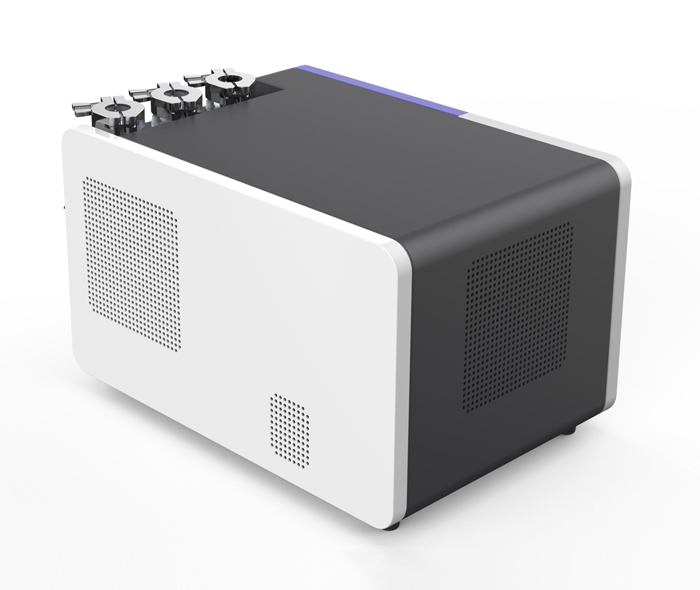

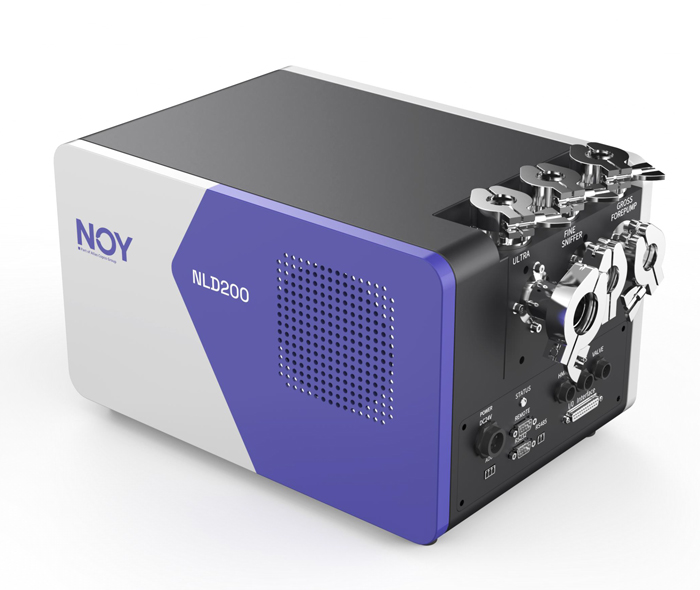

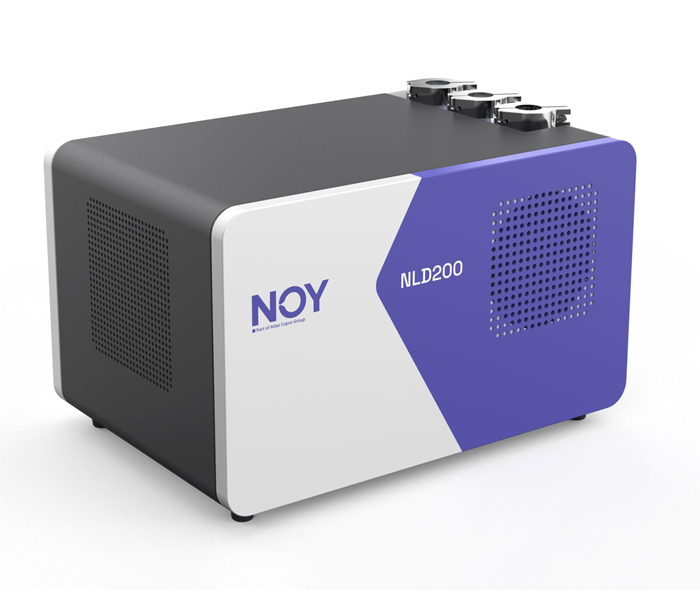

The NLD200 module leak detector has a small size and can be flexibly combined with vacuum systems and various gas path combinations, making it suitable for various detection requirements.
New and old products will be dispatched randomly
- Product overview
- Characteristics
- Technical Parameter
It has the characteristics of short start time, fast leak detection speed, high sensitivity, strong ability to clear helium and no pollutant removal.
Compact structural design to facilitate integration into leak detection systems according to customer needs
Double iridium ion source, strong antioxidant capacity and long service life.
It has the characteristics of short start time, fast leak detection speed, high sensitivity, strong ability to clear helium and no pollutant removal.
Compact structural design to facilitate integration into leak detection systems according to customer needs
Double iridium ion source, strong antioxidant capacity and long service life.
Technical parameter
|
Vacuum minimum leak detection rate |
3×10-13Pa·m³/s |
|
Vacuum leakage rate display range |
1×10-2 ~1×10-13 Pa·m³/s |
|
Minimum leak detection rate for sniffer |
5×10-9 Pa·m³/s |
|
Range of leakage rate of sniffer |
1×10-2 ~1×10-9 Pa·m³/s(zero） |
|
Helium Pumping Speed (l/s) |
2.5 L/s |
|
Detectable masses |
H2，He3，He4 |
|
Backing Pump Speed (m³/h) |
/ |
|
Start-up Time |
≤90 S |
|
Response time |
≤0.5 S |
|
Communication |
RS232,RS485,USB |
|
Calibration |
Internal automatic/external manual |
|
Language |
Chinese/English |
|
Interface dimensions |
DN KF25/DN KF16 |
|
Power / Voltage |
DC24V,240W |
|
Backing pump |
≥2.5L/S |
|
Weight |
22 Kg |
|
Dimensions |
370*230*300 mm |
|
Work environment |
Temperature: 10-40 ℃ Humidity: ≤ 80% |
|
Detectable masses |
H2，He3，He4 |
