NFY260
Pressure Equipment
The NFY260 series fluorocarbon oil pressurization station, used in conjunction with a helium mass spectrometer leak detector and a heavy fluorocarbon oil heating leak detector, is an automated helium pressurization / fluorocarbon oil testing system designed for fine and gross leak testing of electronic components such as integrated circuits, semiconductor devices, and electronic products.
NFY260
Pressure Equipment
- Product Overview
- Technical Specifications
- Download Materials
- Partner
Pressure Equipment

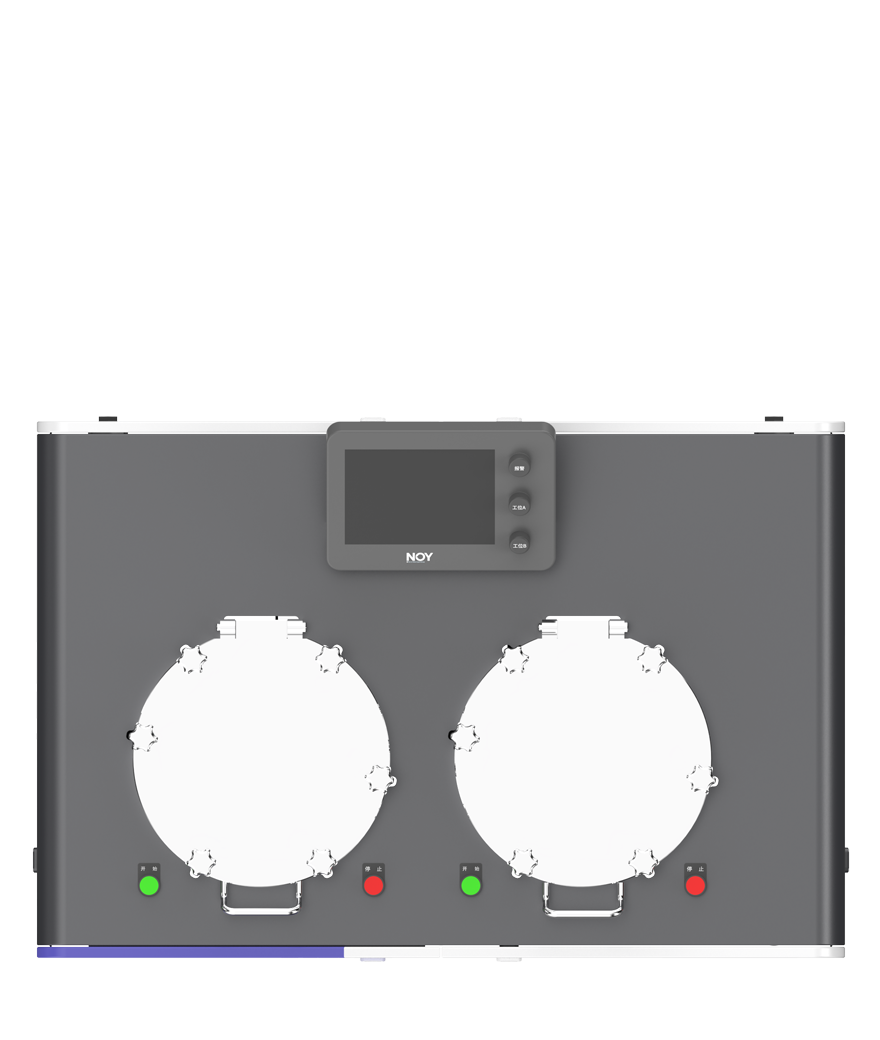

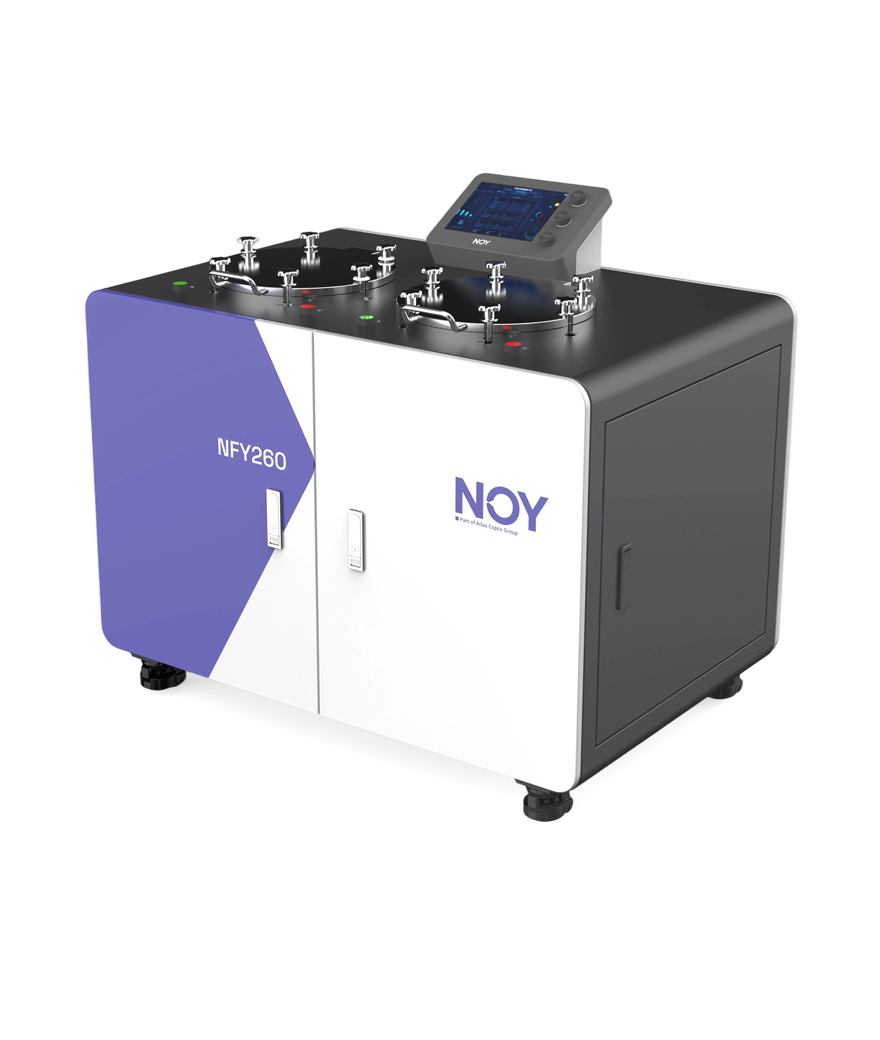

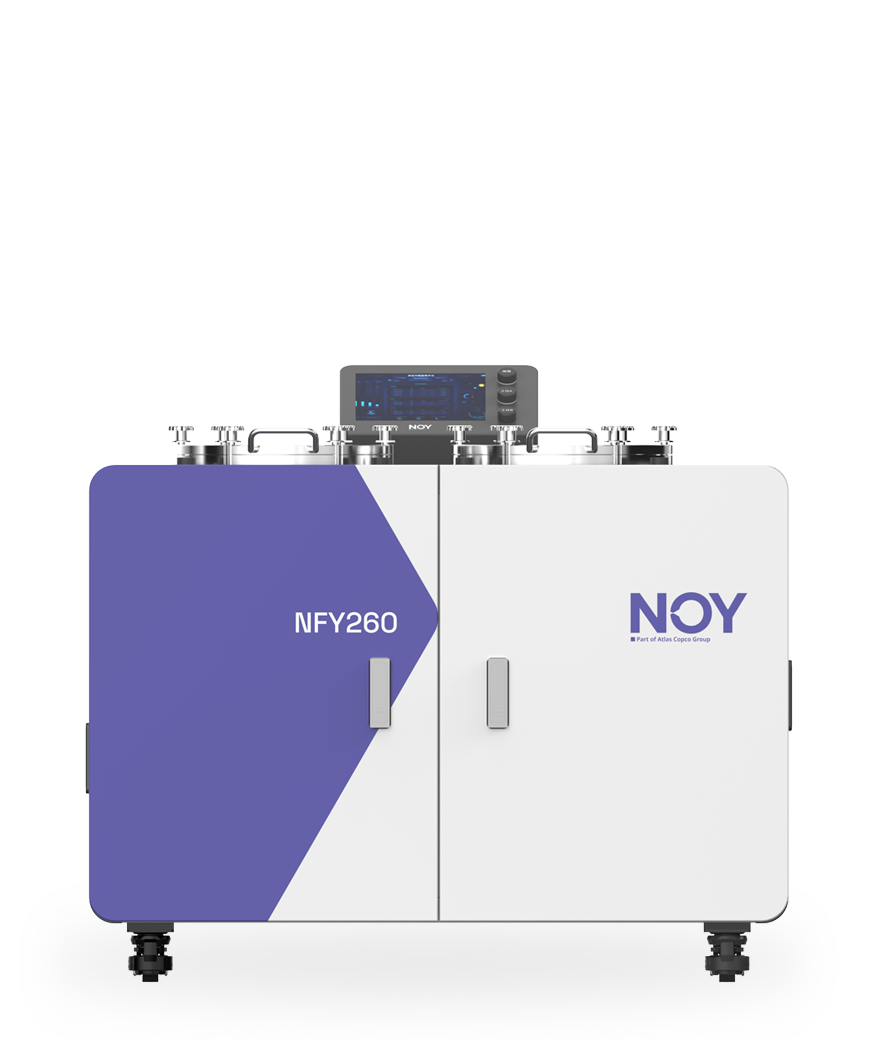

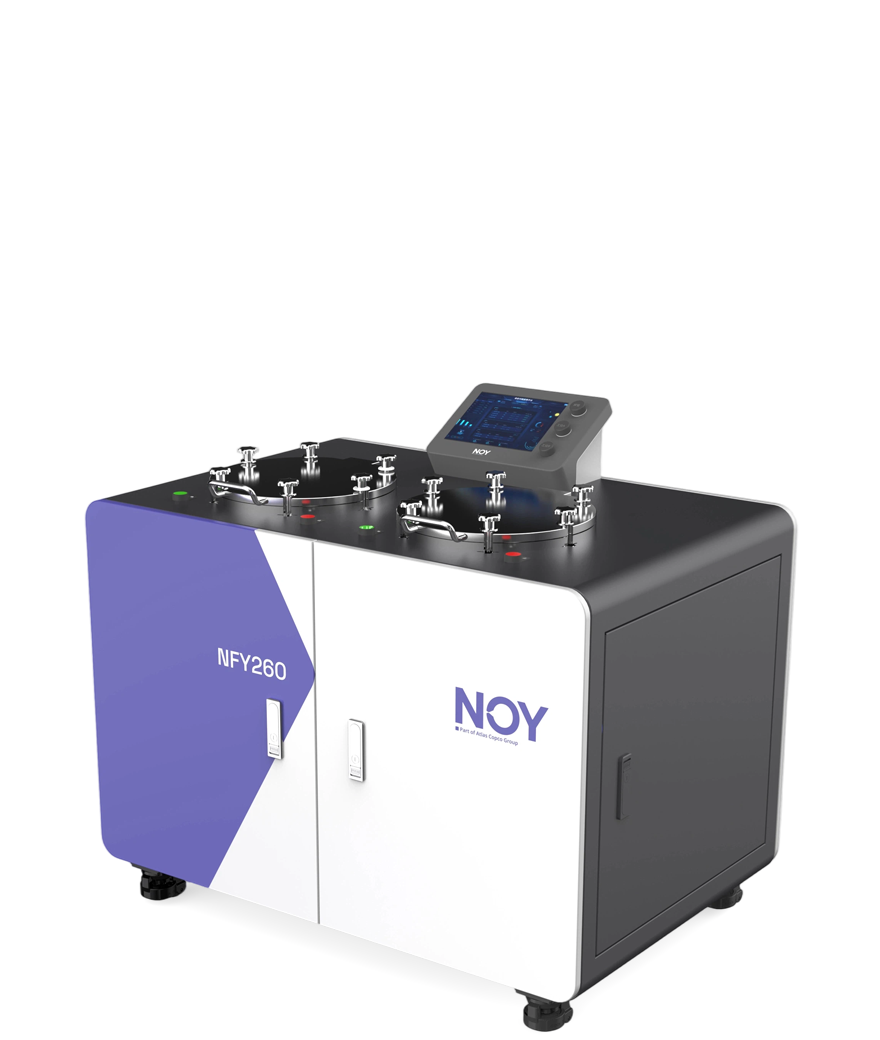

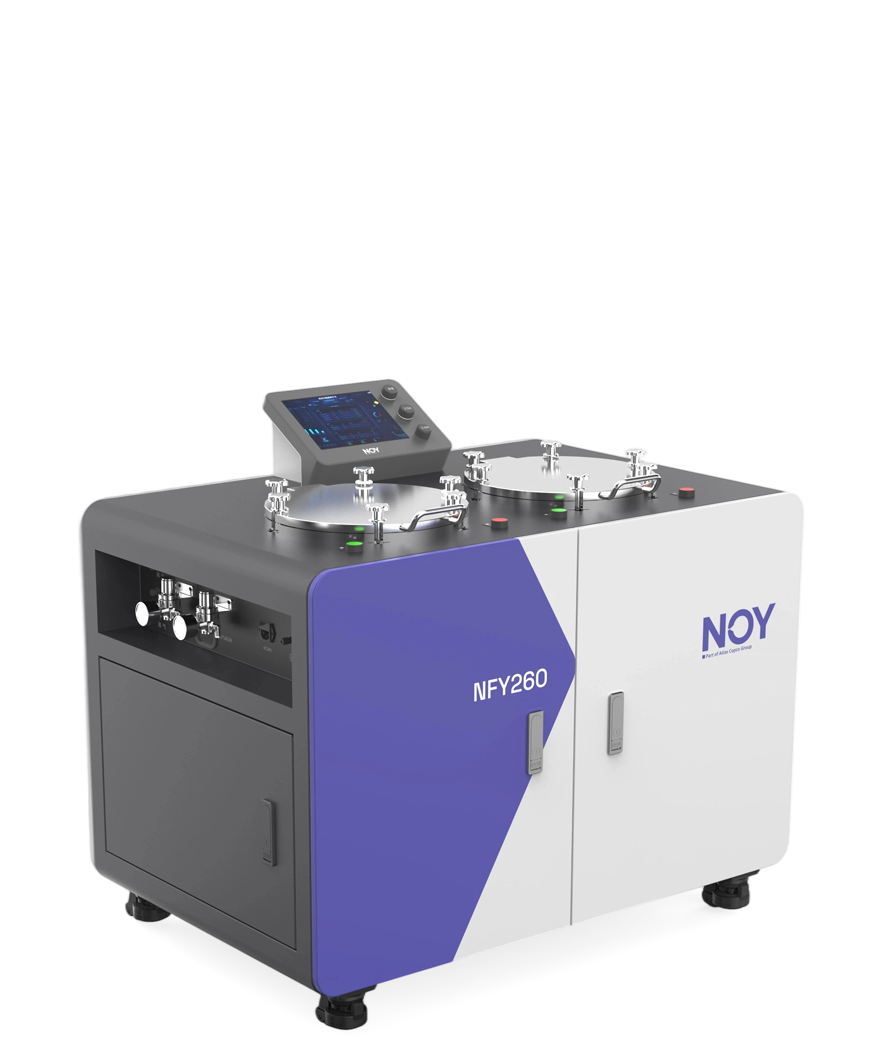

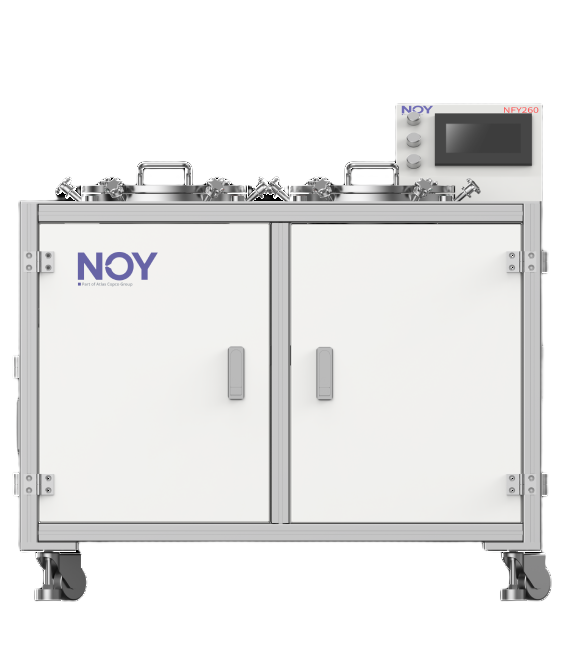

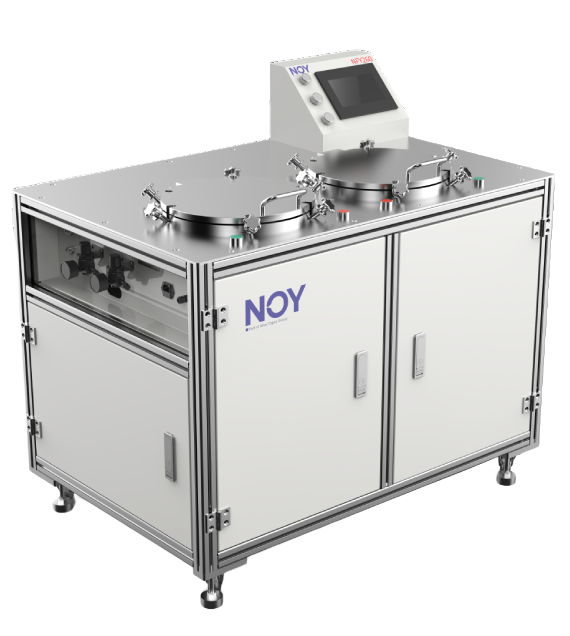

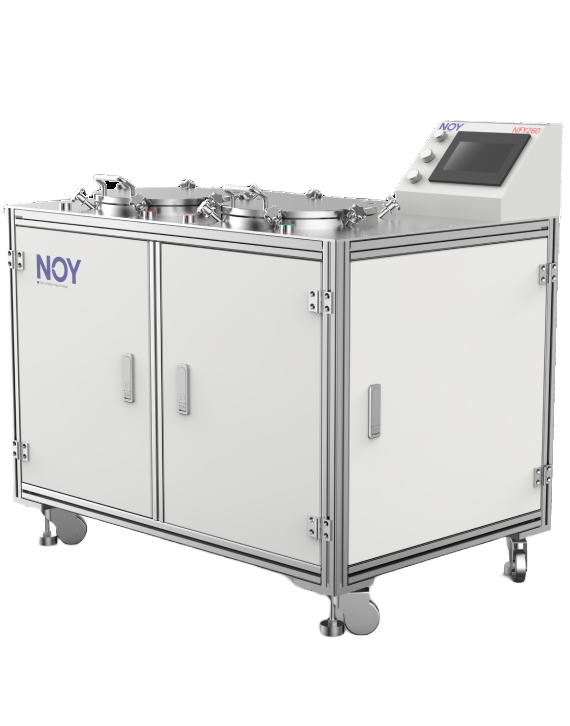

The NFY260 unit features a dual-chamber configuration with a fluorocarbon oil tank and pressure vessels arranged vertically, with the oil tank positioned below the pressure chamber.
Equipped with a touchscreen, displaying pressure, liquid level, and fluorocarbon oil level data. The large-capacity dual pressure chamber design improves testing efficiency. Front-mounted buttons enable one-touch automatic operation. A platform-style design facilitates easy placement of workpieces. Movable casters allow flexible positioning of the equipment. A large LCD screen clearly displays each step of the process flow.
Five core features — NFY260 dual-chamber unit
Large-capacity dual pressure chamber structure with platform-style loading, centralized monitoring via touchscreen, and compatibility with fine and gross leak testing systems for complete component helium pressurization and fluorocarbon oil processing.
Automated helium pressurization and fluorocarbon oil processing for electronic components
The NFY260 is widely used for automated helium pressurization and fluorocarbon oil processing of electronic components such as integrated circuits and semiconductor devices. It serves as a supporting unit for fine and gross leak testing, enabling pre-test treatment of high-volume components.
| Specifications | NFY260 | NFJ150 |
|---|---|---|
| Voltage / Power | 220V/1000W | 220V/1000W |
| Maximum Operating Pressure | ≤0.8MPa | / |
| Vacuum Pressure | ≤50Pa | / |
| Pressure Chamber Volume | Φ260mm*227mm | / |
| Overall Dimensions | 1080×720×822mm | 530×270×370)mm |
| Weight | 200kg | 22kg |
| Heating Temperature | / | 125℃±℃ |
| Heating Rate | / | ≥2℃/min |
| Oil Tank Volume | / | 6L |
