NLD200 Modular Leak Detector
Modular design with a single range
The NHJ480 is a fully automatic mobile helium mass spectrometer leak detector featuring a simple structure and superior performance. The general-purpose model NHJ480 is suitable for a wide range of industries.
NLD200 Modular Leak Detector
Modular design with a single range
- Product Overview
- Technical Specifications
- Download Materials
- Related accessories
- Partner
Modular Leak DetectorWithout backing pump

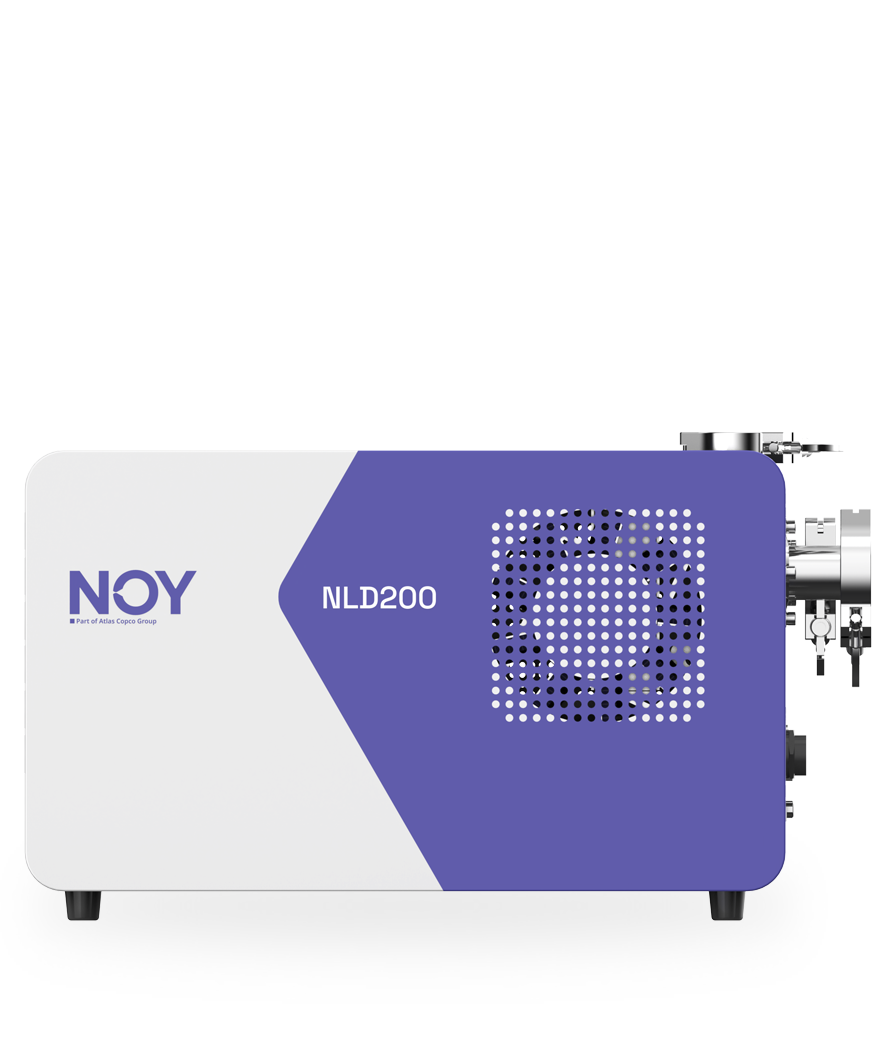

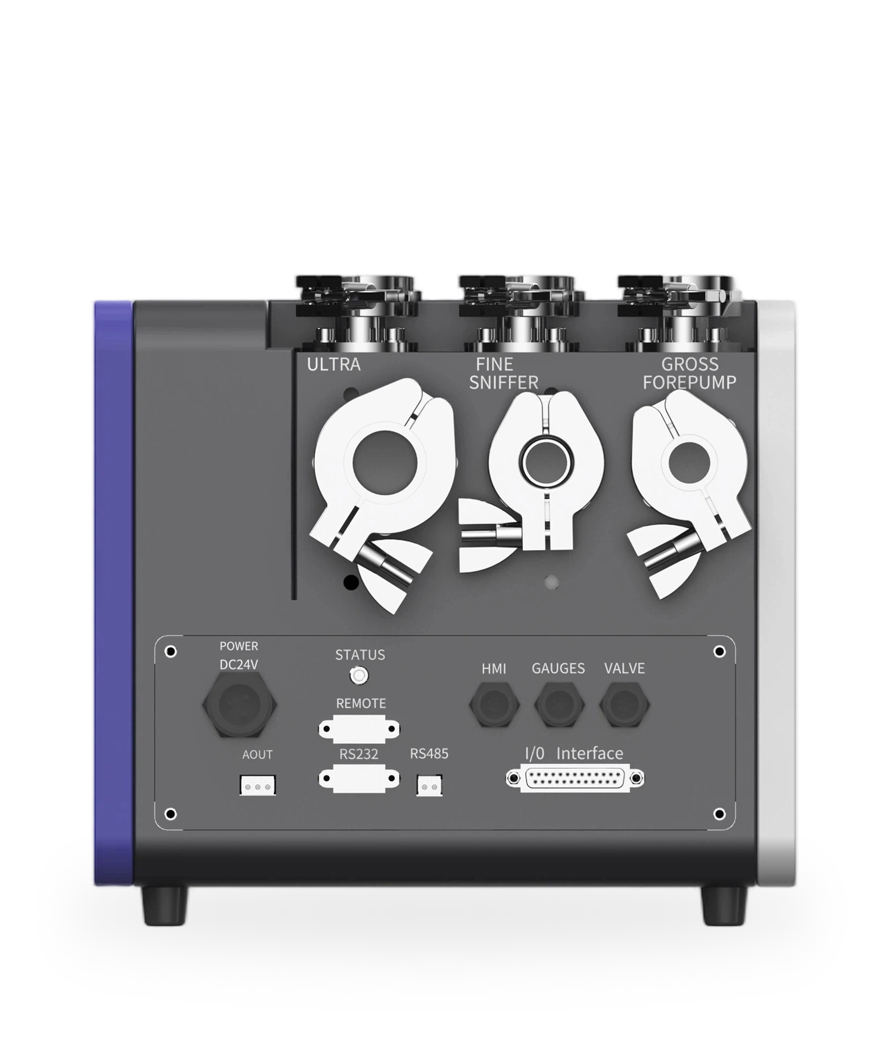

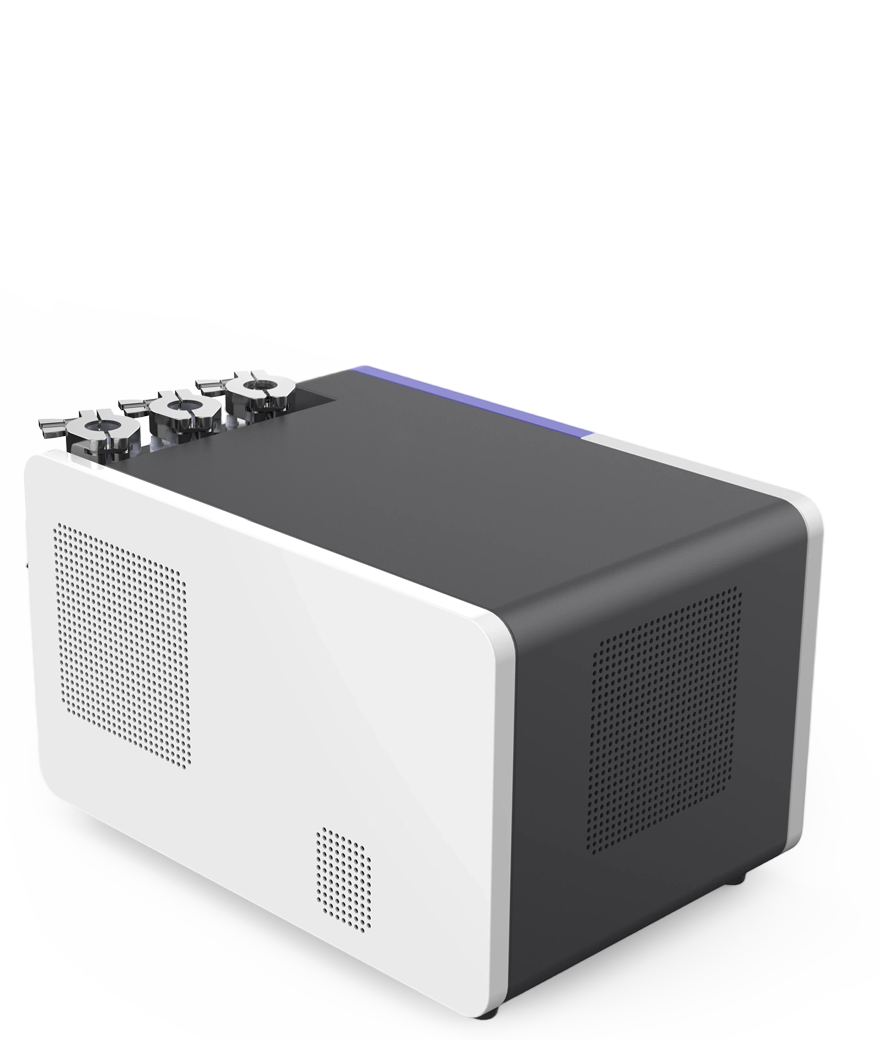

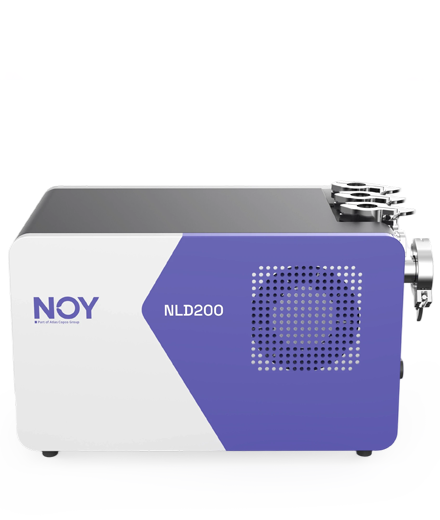

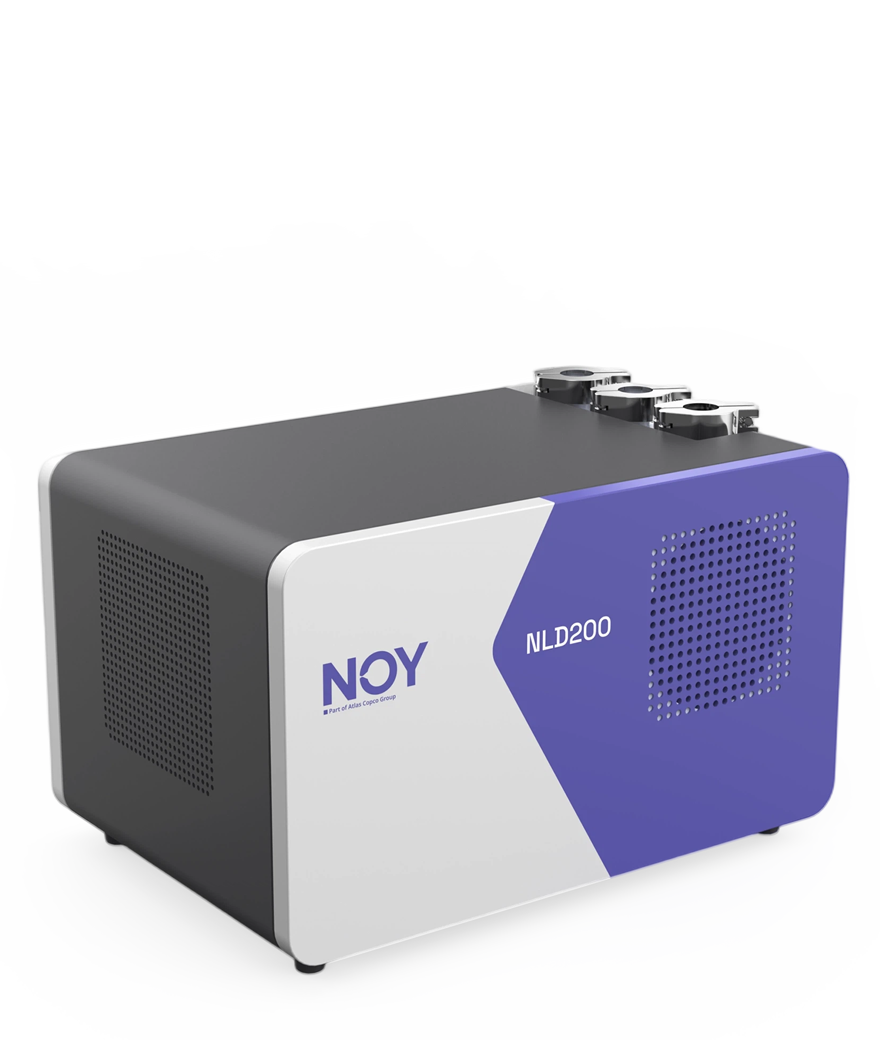

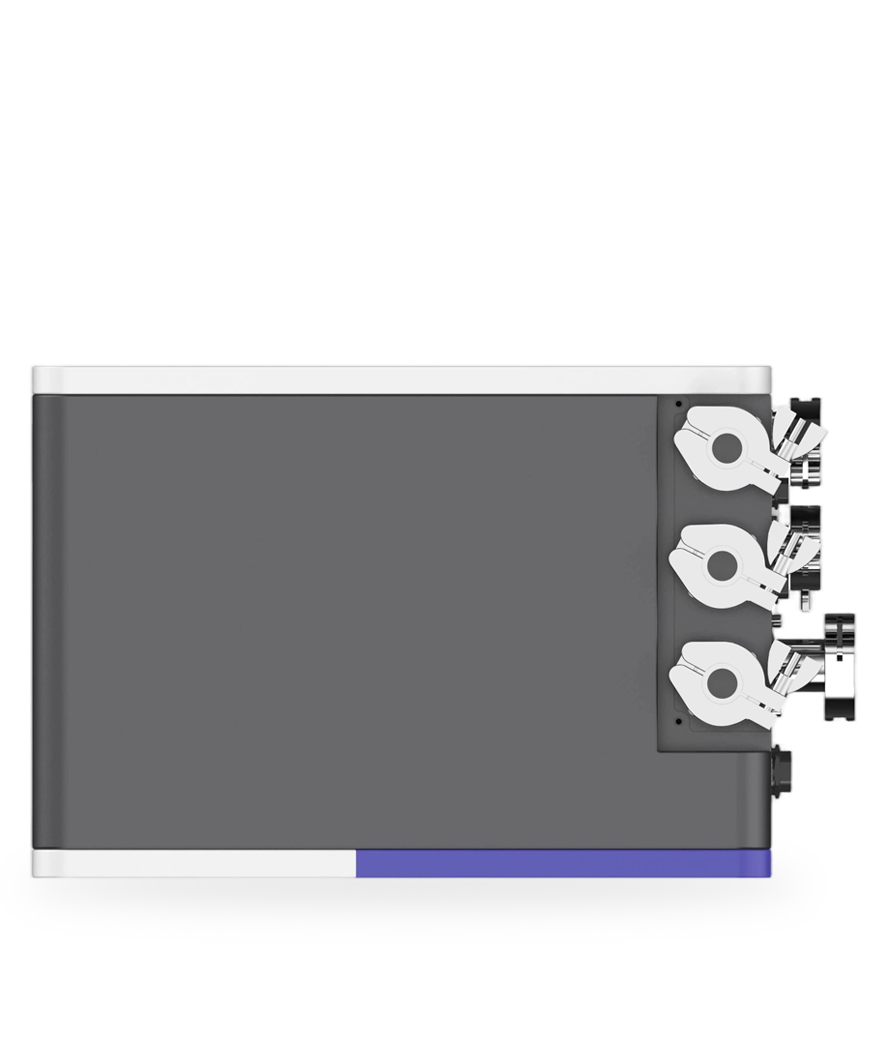

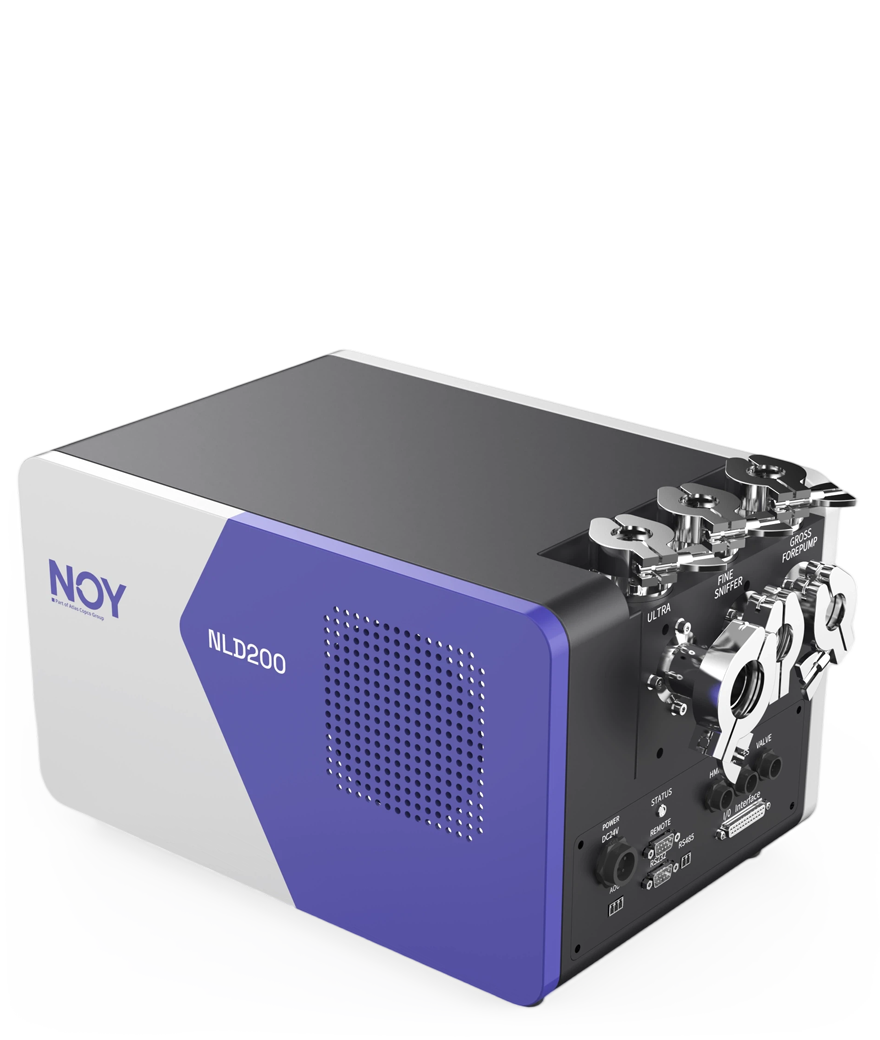

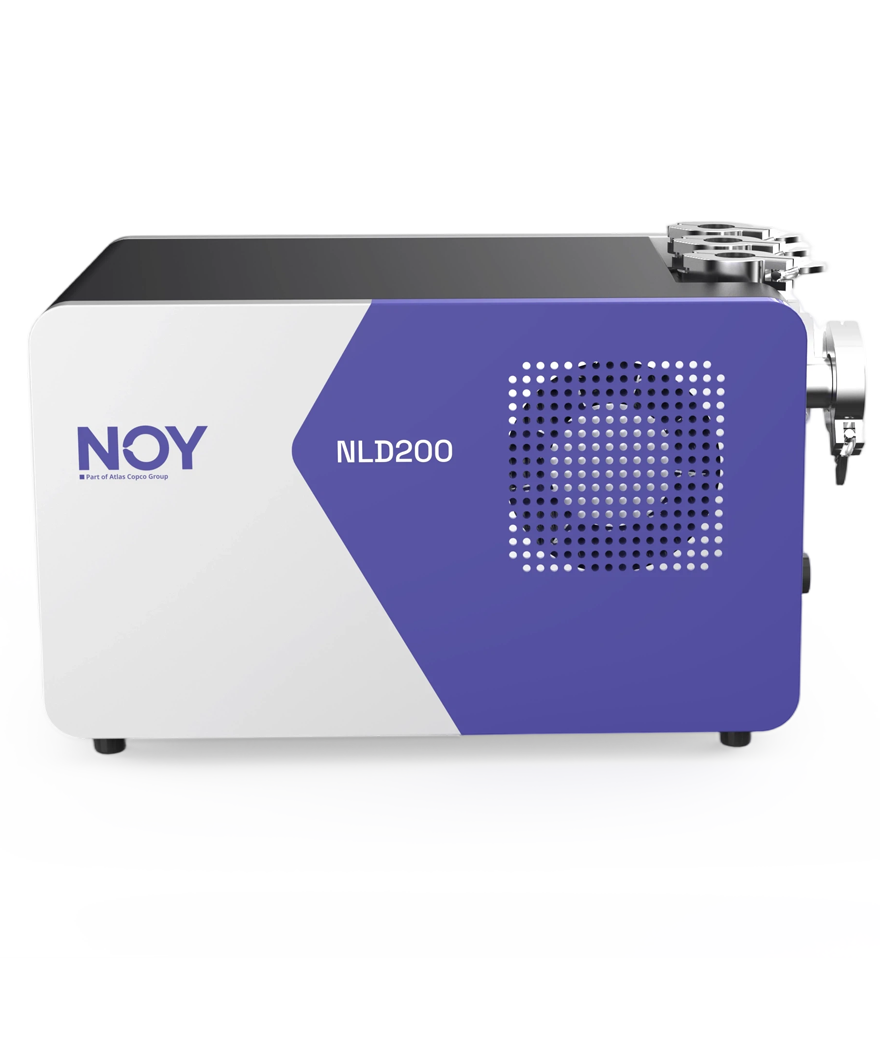

The NLD200 modular leak detector is a compact, modular combination unit that can flexibly integrate with vacuum systems and various gas circuit configurations. It is suitable for a wide range of testing requirements in single-range, high-volume automated production lines.
Unique gas circuit design and self-developed mass spectrometer chamber ensure stable signals and strong resistance to magnetic interference. Mechanical and electrical isolation, dual-iridium filament ion source with oxidation resistance and long service life. Large-leak protection mode prevents atmospheric shocks to the molecular pump. Large-leak detection triggers an automatic alarm when the preset pressure is not reached. A handheld remote control unit (up to 150 m) with WiFi connectivity supports APP remote control. Auto-zero and automatic range switching enable real-time data updates and direct Excel report generation.
Five core features — modular integrated model.
Modular combination design with a compact footprint, easy to interface with vacuum equipment, and perfectly suited for high-volume automated production line testing applications.
Modular integration — ideal for high-volume automated inspection production lines
The NLD200 modular leak detector features a compact modular structure that can flexibly interface with various vacuum systems, meeting the testing requirements of single-range, high-volume automated production lines. It can be integrated into complete equipment without occupying additional operating space, ensuring stable and reliable leak detection performance.
| Technical Specifications | Standard Configuration List | ||
|---|---|---|---|
| Minimum Detectable Leak Rate | 3×10⁻¹³ Pa·m³/s | 主机检漏模块 | ×1 |
| Maximum Inlet Pressure | ≤2000 Pa | Display Module | ×1 |
| Startup Time | ≤90 s | Power Supply Module | ×1 |
| Response Time | ≤0.5 s | Data Cable | ×2（Customizable） |
| Detectable Gases | ⁴He,³He,H₂ | Standard Leak | ×1（Optional） |
| Communication | RS232,RS485,USB | ||
| Calibration | Auto / Manual | ||
| Language | Chinese/English | ||
| Interface Dimensions | DN KF25/DN KF16 | ||
| Power Supply / Voltage | DC24V,350W | ||
| Weight | 22 kg | ||
| Dimensions | (430*270*245) mm | ||
| Operating Environment | Temperature: (5–40)°C Humidity:≤80%RH | ||
| Backing Pump | / | ||
| Maximum Operating Current | 14.6A |
| Parameters | NLD200 | NHJ400M | NHJ480 | NHJ60O(D) | NHJ800D(L) |
|---|---|---|---|---|---|
| Minimum Detectable Leak Rate (Vacuum Mode) | 3×10-13Pa·m3/s | 3×10-13Pa·m3/s | 3×10-13Pa·m3/s | 3×10-13Pa·m3/s | 3×10-13Pa·m3/s |
| Vacuum Leak Rate Display Range | / | 1×10-2~1×10-13Pa·m3/s | 1×10-2~1×10-13Pa·m3/s | 1×10-2~1×10-13Pa·m3/s | 1×10-2~1×10-13Pa·m3/s |
| Minimum Detectable Leak Rate (Sniffer Mode) | / | 5×10-9Pa·m3/s | 5×10-9Pa·m3/s | 5×10-9Pa·m3/s | 5×10-9Pa·m3/s |
| Sniffer Leak Rate Display Range | 1×10-2~1×10-9Pa·m3/s (zero) |
1×10-2~1×10-9Pa·m3/s (zero) |
1×10-2~1×10-9Pa·m3/s (zero) |
1×10-2~1×10-9Pa·m3/s (zero) |
1×10-2~1×10-9Pa·m3/s (zero) |
| Helium Pumping Speed | 2.5L/s | 2.5L/s | 2.5L/s | 2.5L/s | 2.5L/s |
| Detectable Gases | 4He, 3He, H2 | 4He, 3He, H2 | 4He, 3He, H2 | 4He, 3He, H2 | 4He, 3He, H2 |
| Startup Time | ≤90 s | ≤100 s | ≤90 s | ≤90 s | ≤90 s |
| Response Time | ≤0.5 s | ≤0.5 s | ≤0.5 s | ≤0.5 s | ≤0.5 s |
| Leak Test Port Pressure | ≤2000 Pa | ≤2000 Pa | ≤2000 Pa | ≤2000 Pa | ≤2000 Pa |
| Valve Block | / | Yes | Yes | Yes | Yes |
| Display Screen | / | Split-Type | Integrated | Integrated | Integrated |
| Backing Pump | / | Without Backing Pump | Oil Pump | Oil Pump | Dry Pump |
| Backing Pump Pumping Speed | / | / | 16m3/h | 2.5m3/h | 15m3/h |
| Main Unit Power Supply / Voltage | DC24V、240W | DC24V、350W | 100-120V、60Hz 200-240V、50Hz |
100-120V、60Hz 200-240V、50Hz |
100-120V、60Hz 200-240V、50Hz |
| Operating Environment | Temperature:10-40℃ Humidity:≤80% RH |
Temperature:5-40℃ Humidity:≤80% RH |
Temperature:5-40℃ Humidity:≤80% RH |
Temperature:5-40℃ Humidity:≤80% RH |
Temperature:5-40℃ Humidity:≤80% RH |
| Language | Chinese / English | Chinese / English | Chinese / English | Chinese / English | Chinese / English |
| Dimensions | 370*230*300 mm | 420*275*359 mm | 620*370*1027 mm | 620*370*480 mm | 620*370*1027 mm |
| Weight | 22 kg | 26 kg | 110 kg | 47 kg | 110 kg |
| Communication | RS232,RS485,USB | / | / | / | / |
| Calibration | Internal Automatic / External Manual | / | / | / | / |
| Interface Dimensions | DN KF25/DN KF16 | / | / | / | / |
| Display Units | / | Pa·m³/s、mbar·l/s、 atm·cc/s、Torr·l/s、ppm |
Pa·m³/s、mbar·l/s、 atm·cc/s、Torr·l/s、ppm |
Pa·m³/s、mbar·l/s、 atm·cc/s、Torr·l/s、ppm |
Pa·m³/s、mbar·l/s、 atm·cc/s、Torr·l/s、ppm |
| Optional | / | / | / | ○Dry Pump (NHJ600D) | ○Large Dry Pump (NHJ800DL，35m³/h) |
| Other | / | Modular Design | Integrated Design | Portable design with low pumping speed, suitable for laboratory and similar applications | Modular Design |
