NHJ400 Helium Leak Detector (New Energy Application)

Split-type, dedicated to the new energy industry

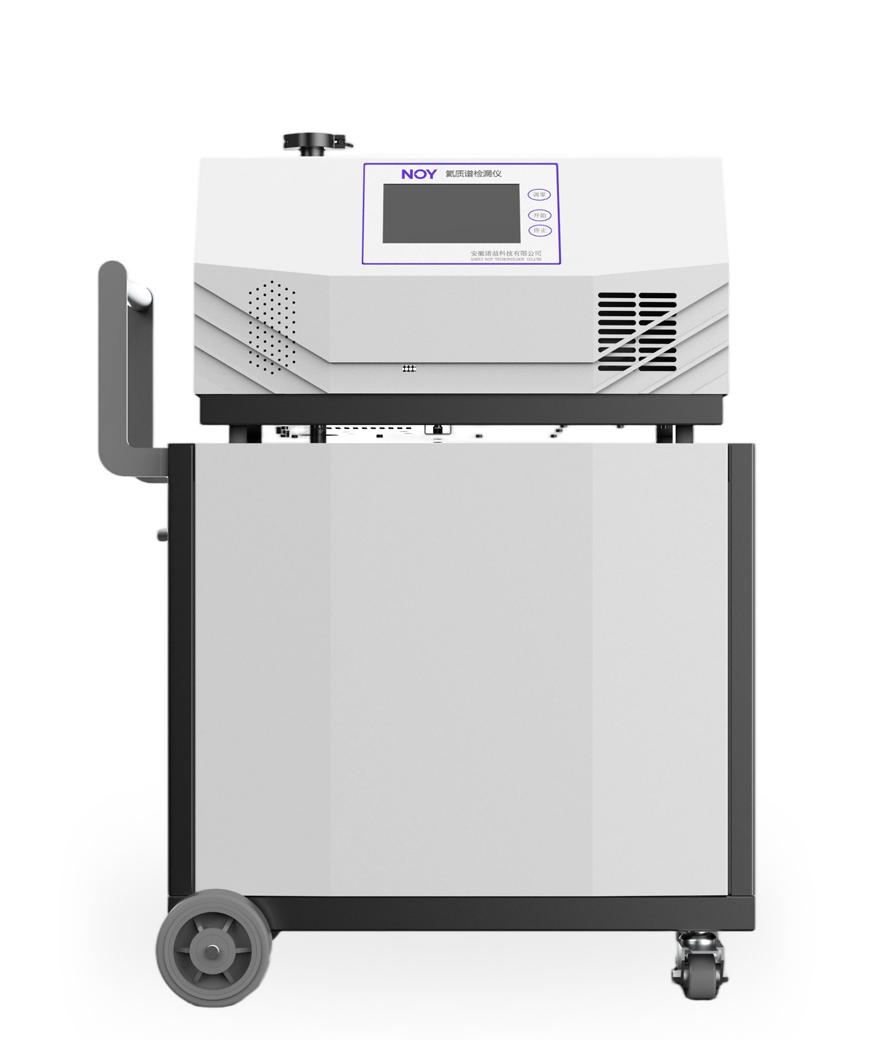

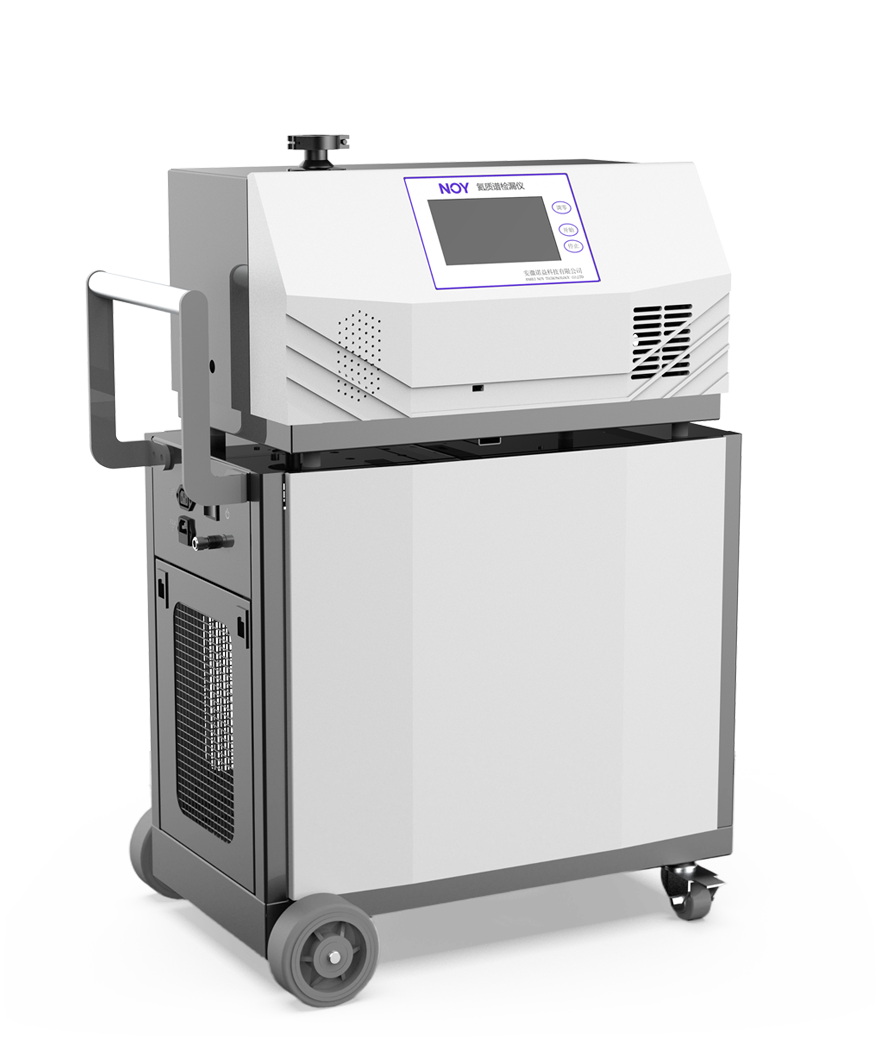

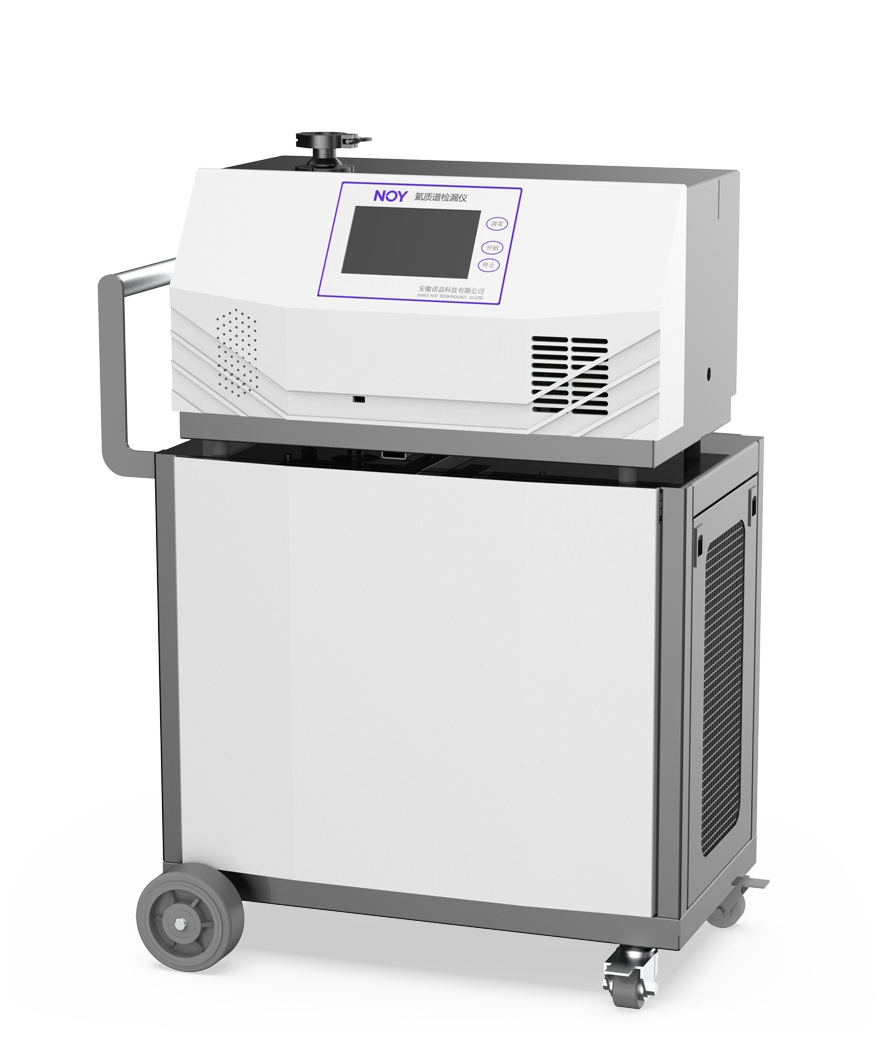

NHJ400 Helium Mass Spectrometer Leak Detector — dedicated to the new energy industry with a split-type configuration.

NHJ400 Helium Leak Detector (New Energy Application)

Split-type, dedicated to the new energy industry

  • Product Overview
  • Technical Specifications
  • Download Materials
  • Related accessories
  • Partner
Product Overview
NHJ400

Helium Mass Spectrometer Leak Detector (New Energy Application) Oil Pump

A classic oil-pump configuration with a separate mass spectrometer and backing pump, delivering stable, reliable full-auto mobile operation for the new-energy sector.

Split layout separates the mass spectrometer from the backing pump for flexible installation Oil pump classic configuration with stable, reliable full-auto mobile operationtatable color touchscreen.

NHJ400系列 分体式全自动移动式氦质谱检漏仪
Key Features

Nine core performance features — split-type model dedicated to new energy applications

Split-type layout with oil pump, classic model featuring fully automatic mobile operation. Simple and reliable structure, suitable for various leak detection applications in the new energy industry.

Split-Type Design
Dedicated to new energy applications
Classic Oil Pump Model
Gas circuit design with contamination protection
Core self-developed mass spectrometer chamber
Large-leak detection and protection
WiFi + APP remote control
Dual-iridium filament ion source
7-inch rotatable touchscreen
Application

Dedicated to new energy applications with a split-type configuration.

The NHJ400 series is a fully automatic mobile helium mass spectrometer leak detector, suitable for various leak detection applications in the new energy industry, featuring a split-type configuration and a classic oil pump solution. The unit is easy to move, with a simple and stable structure, delivering high-performance leak detection capability and adaptable to demanding conditions across a wide range of industrial sites.

Technical Specifications
NHJ400 Specifications
Parameter Detail / Model
Minimum Detectable Leak Rate (Vacuum Mode) 3×10-13 Pa·m³/s Backing pump Oil pump
Vacuum Leak Rate Display Range 1×10-2 ~ 1×10-13 Pa·m³/s Molecular pump Imported
Minimum Detectable Leak Rate (Sniffer Mode) 5×10-9 Pa·m³/s Solenoid valve Imported, custom-made for leak detectors
Sniffer Leak Rate Display Range 1×10-2 ~ 1×10-9 Pa·m³/s (zero) 7-inch color touchscreen ●
Detectable Gases 4He, 3He, H2 Trolley ●
Backing Pump Pumping Speed 16 m³/h Hand-held controller (150 m) ○
Startup Time ≤90 s Sniffer probe ○
Response Time ≤0.5 s Gross leak detection ●
Test Port Pressure ≤2000 Pa Gross leak protection ●
Main Unit Power Supply / Voltage 1000w
200-240V , 50Hz
External calibrated leak ●
Language Chinese / English / Korean / Japanese / Thai / Hindi / Malay / Italian Internal calibrated leak ○
Dimensions 650×390×955 mm Data storage ●
Net Weight 103 kg Input/output interfaces RS232, RS485, USB,
external control I/O, analog output
Display Units Pa·m³/s, mbar·l/s, atm·cc/s, Torr·l/s, ppm
Operating Environment Temperature: 5–40°C
Humidity: ≤80% RH
● Standard    ○ Optional
Multi-Model Comparison
Parameter NLD200 NHJ400M NHJ400 NHJ480 NHJ600(D) NHJ800D(L)
Minimum Detectable Leak Rate (Vacuum Mode) 3×10-13 Pa·m³/s 3×10-13 Pa·m³/s 3×10-13 Pa·m³/s 3×10-13 Pa·m³/s 3×10-13 Pa·m³/s 3×10-13 Pa·m³/s
Vacuum Leak Rate Display Range 1×10-2 ~ 1×10-13 Pa·m³/s 1×10-2 ~ 1×10-13 Pa·m³/s 1×10-2 ~ 1×10-13 Pa·m³/s 1×10-2 ~ 1×10-13 Pa·m³/s 1×10-2 ~ 1×10-13 Pa·m³/s 1×10-2 ~ 1×10-13 Pa·m³/s
Minimum Detectable Leak Rate (Sniffer Mode) 5×10-9 Pa·m³/s 5×10-9 Pa·m³/s 5×10-9 Pa·m³/s 5×10-9 Pa·m³/s 5×10-9 Pa·m³/s 5×10-9 Pa·m³/s
Sniffer Leak Rate Display Range 1×10-2 ~ 1×10-9 Pa·m³/s (zero) 1×10-2 ~ 1×10-9 Pa·m³/s (zero) 1×10-2 ~ 1×10-9 Pa·m³/s (zero) 1×10-2 ~ 1×10-9 Pa·m³/s (zero) 1×10-2 ~ 1×10-9 Pa·m³/s (zero) 1×10-2 ~ 1×10-9 Pa·m³/s (zero)
Detectable Gases 4He, 3He, H2 4He, 3He, H2 4He, 3He, H2 4He, 3He, H2 4He, 3He, H2 4He, 3He, H2
Startup Time ≤90 s ≤90 s ≤90 s ≤90 s ≤90 s ≤90 s
Response Time ≤0.5 s ≤0.5 s ≤0.5 s ≤0.5 s ≤0.5 s ≤0.5 s
Test Port Pressure ≤2000 Pa ≤2000 Pa ≤2000 Pa ≤2000 Pa ≤2000 Pa ≤2000 Pa
Valve Block / Yes Yes Yes Yes Yes
Display Screen Split-Type Split-Type Split-Type Integrated Integrated Integrated
Backing Pump / / Oil Pump Oil Pump Oil Pump Dry Pump
Backing Pump Pumping Speed / / 16 m³/h 16 m³/h 2.5 m³/h 15 m³/h
Main Unit Power Supply / Voltage DC24V, 350 W DC24V, 350 W 1000 W
200V-240V , 50 Hz
1000 W
200V-240V , 50 Hz
NHJ600: 650 W;
NHJ600D: 650 W;
200V-240V , 50 Hz
NHJ800D: 1000 W;
NHJ800DL: 1300 W;
100-120V , 60Hz
200V-240V , 50 Hz
Operating Environment Temperature: 5–40°C
Humidity: ≤80% RH
Temperature: 5–40°C
Humidity: ≤80% RH
Temperature: 5–40°C
Humidity: ≤80% RH
Temperature: 5–40°C
Humidity: ≤80% RH
Temperature: 5–40°C
Humidity: ≤80% RH
Temperature: 5–40°C
Humidity: ≤80% RH
Language Chinese / English / Korean / Japanese / Thai / Hindi / Malay / Italian / Hungarian Chinese / English / Korean / Japanese / Thai / Hindi / Malay / Italian Chinese / English / Korean / Japanese / Thai / Hindi / Malay / Italian Chinese / English / Korean / Japanese / Thai / Hindi / Malay / Italian Chinese / English / Korean / Japanese / Thai / Hindi / Malay / Italian Chinese / English / Korean / Japanese / Thai / Hindi / Malay / Italian
Dimensions 435×270×249 mm 420×275×350 mm 650×390×955 mm 620×370×1027 mm 620×370×480 mm 620×370×1027 mm
Net Weight 22 kg 26 kg 103 kg 110 kg NHJ600: 47 kg; NHJ600D: 44 kg NHJ800D: 94 kg; NHJ800DL: 116 kg
Communication RS232, RS485, USB RS232, RS485, USB RS232, RS485, USB RS232, RS485, USB RS232, RS485, USB RS232, RS485, USB
Calibration External Automatic / External Manual Internal Automatic / External Manual Internal Automatic / External Manual Internal Automatic / External Manual Internal Automatic / External Manual Internal Automatic / External Manual
Interface Dimensions DN KF25 / DN KF16 DN KF25 DN KF25 DN KF25 DN KF25 DN KF25
Display Units Pa·m³/s, mbar·l/s, atm·cc/s, Torr·l/s, ppm Pa·m³/s, mbar·l/s, atm·cc/s, Torr·l/s, ppm Pa·m³/s, mbar·l/s, atm·cc/s, Torr·l/s, ppm Pa·m³/s, mbar·l/s, atm·cc/s, Torr·l/s, ppm Pa·m³/s, mbar·l/s, atm·cc/s, Torr·l/s, ppm Pa·m³/s, mbar·l/s, atm·cc/s, Torr·l/s, ppm
Optional / / / / ○ Dry pump NHJ600D, 3 m³/h ○ Large dry pump NHJ800DL, 35 m³/h
Others Modular design, easy system integration , multiple measuring ranges Modular design, easy system integration,  multi-range automatic switching Split design; dedicated to the new energy industry Integrated design; general-purpose oil pump model Portable design; suitable for laboratories and cross-site testing Dry pump model for cleanroom applications
● Standard    ○ Optional
